3.2 - Pre-Survey Mapping Basic

Digitising specific features

  • Select the relevant layer selected in the Layers Panel.

  • Set the layer to be editable with the pencil icon .

  • Then click the add feature tool, this will look different for Points , Lines and Polygons .

  • Start drawing over the feature using aerial photography or OSM Standard images as a guide. To see more detail you can zoom in by scrolling the mouse wheel.

  • Right-click when you have finished.

Important

You may need to pan the map around by dragging it with the middle mouse button to see the whole feature you are digitising.

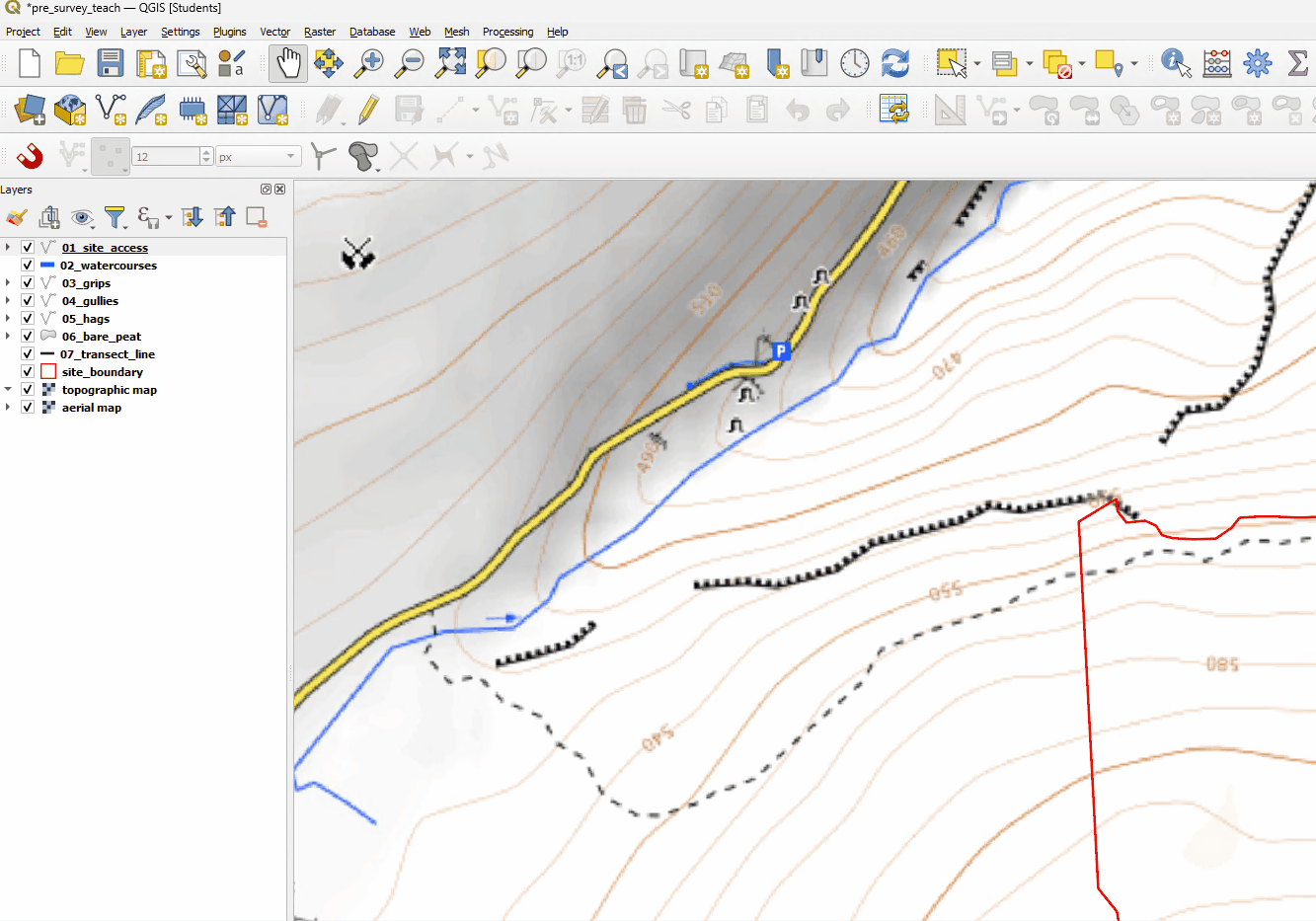

Site Access

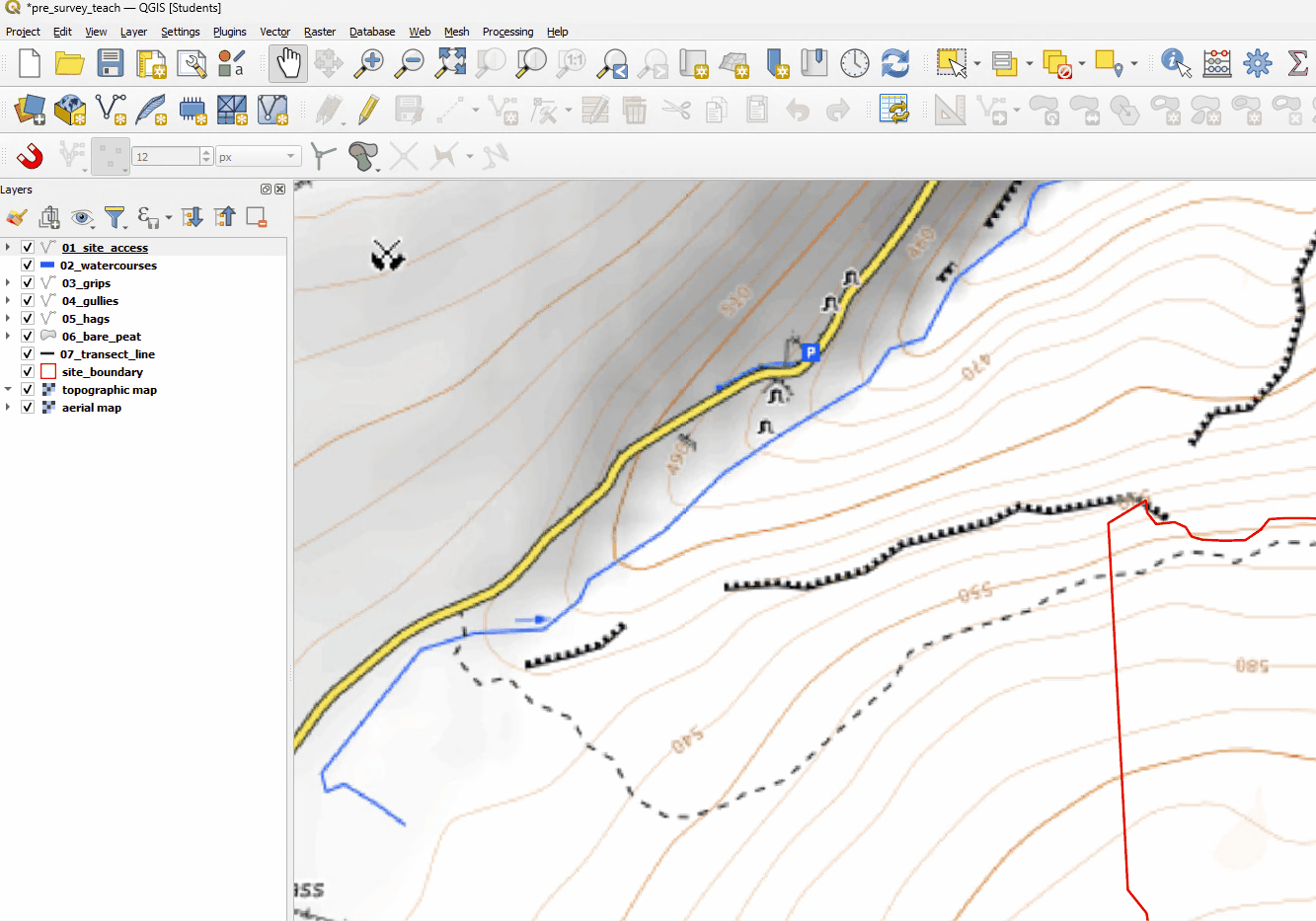

Watercourses

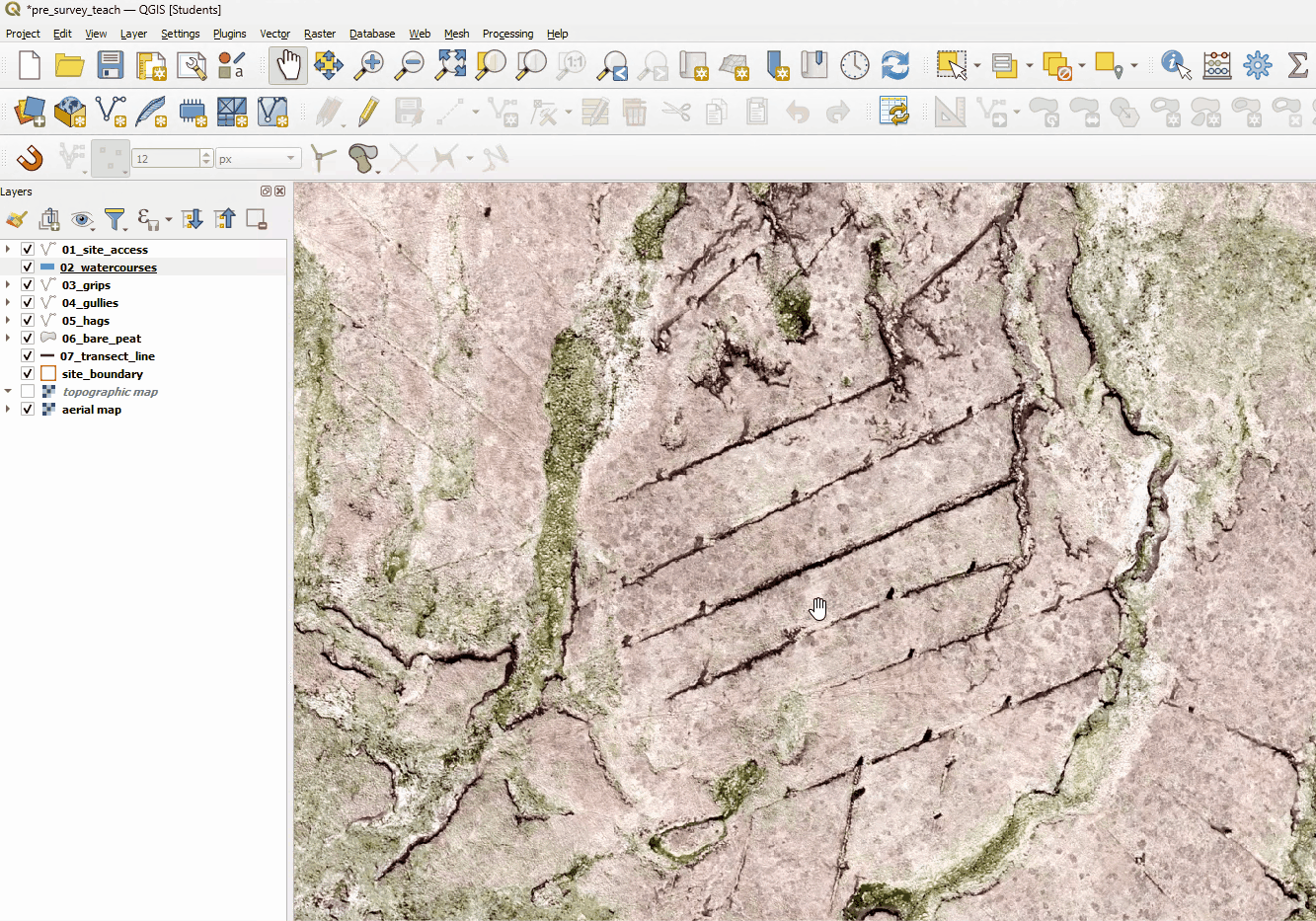

Grips

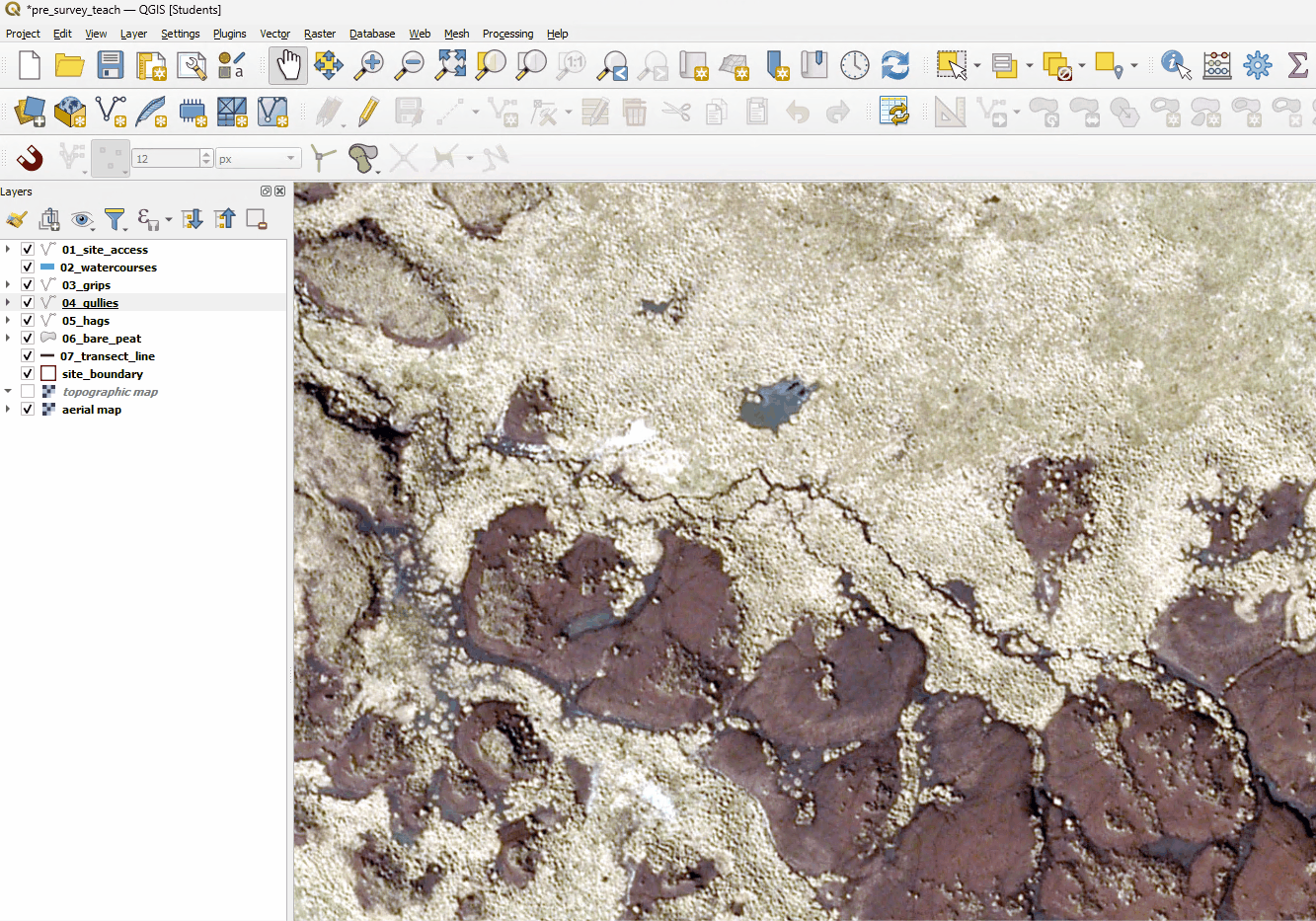

Gullies

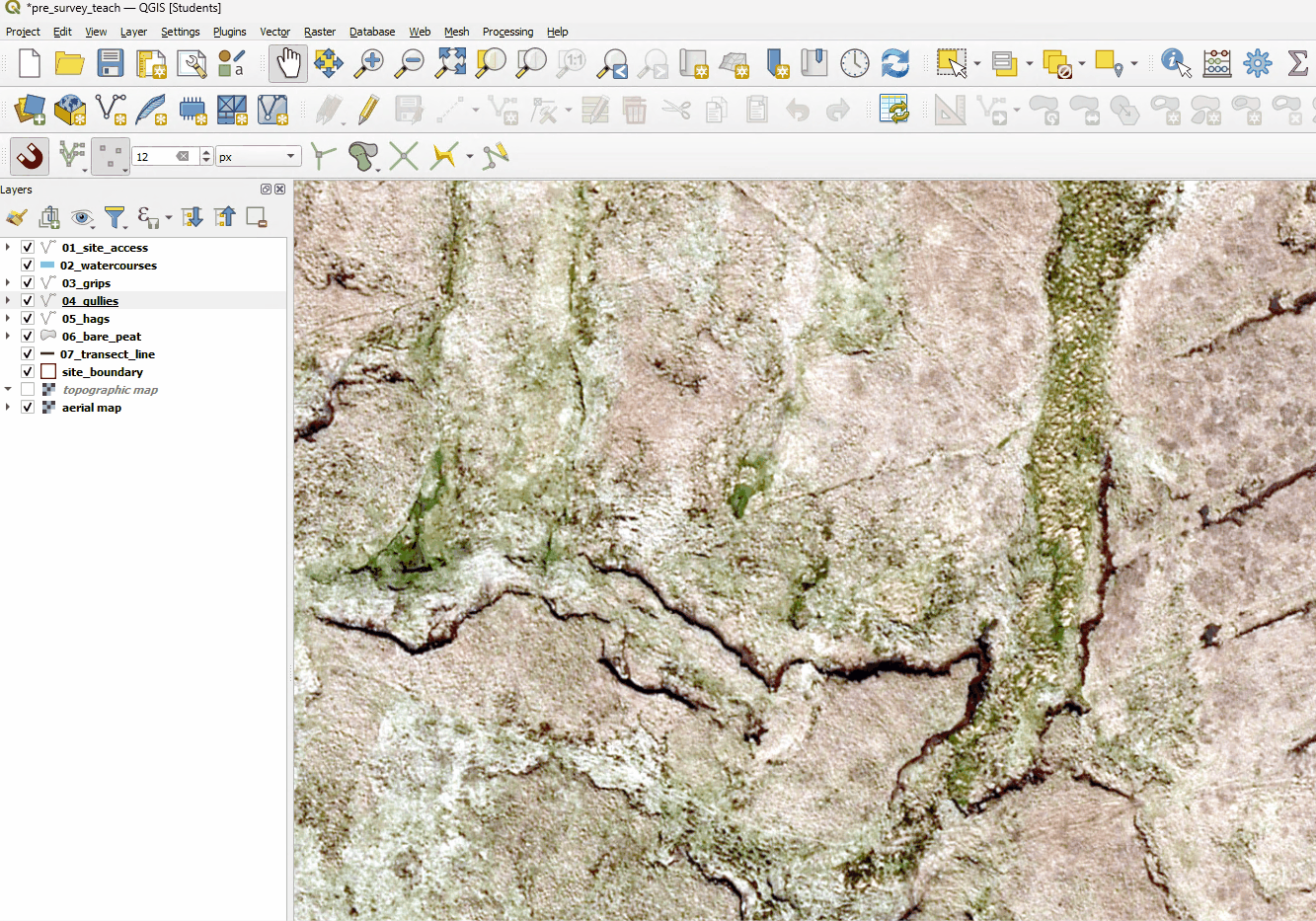

Hags

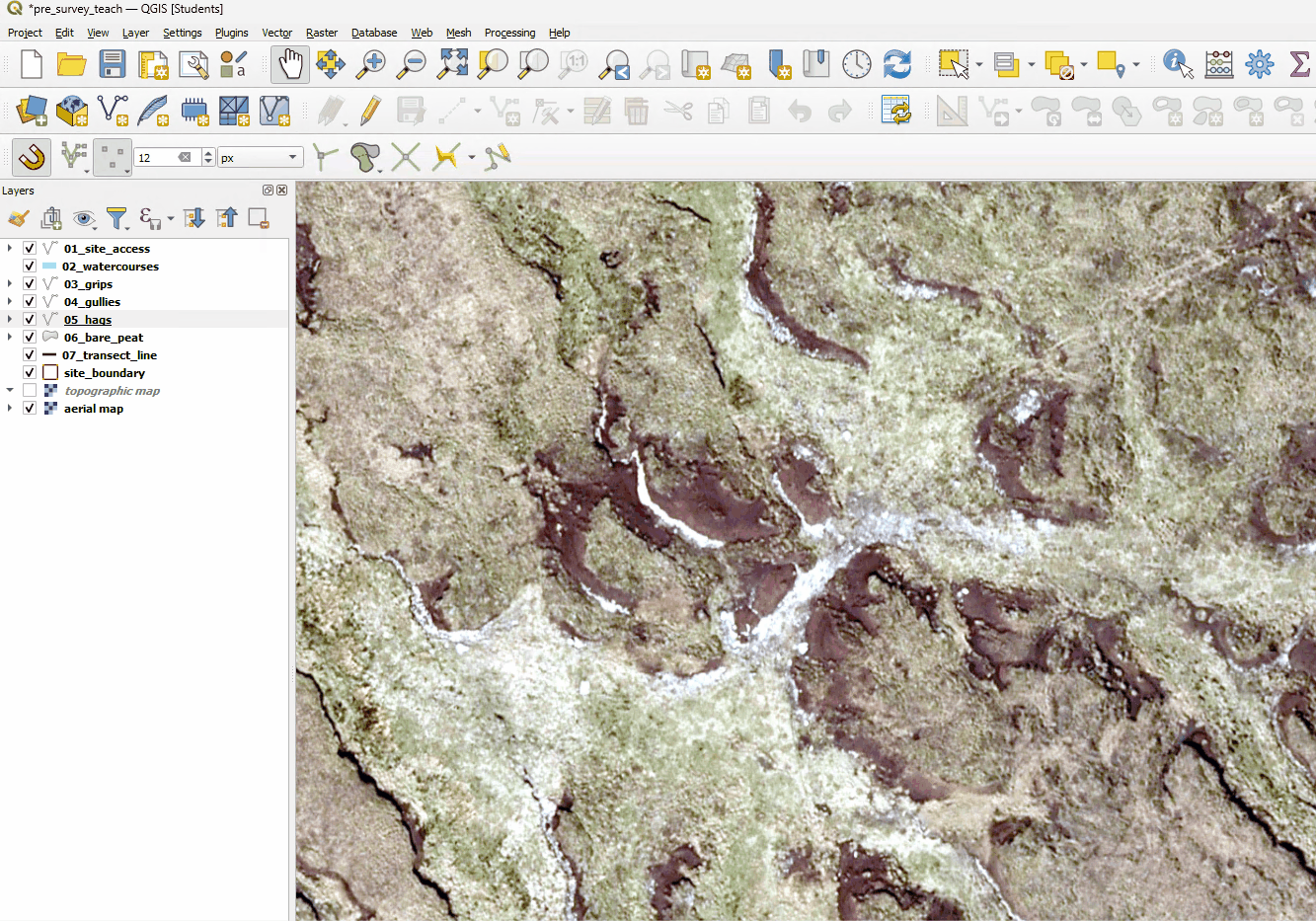

Areas of bare peat

Survey setup

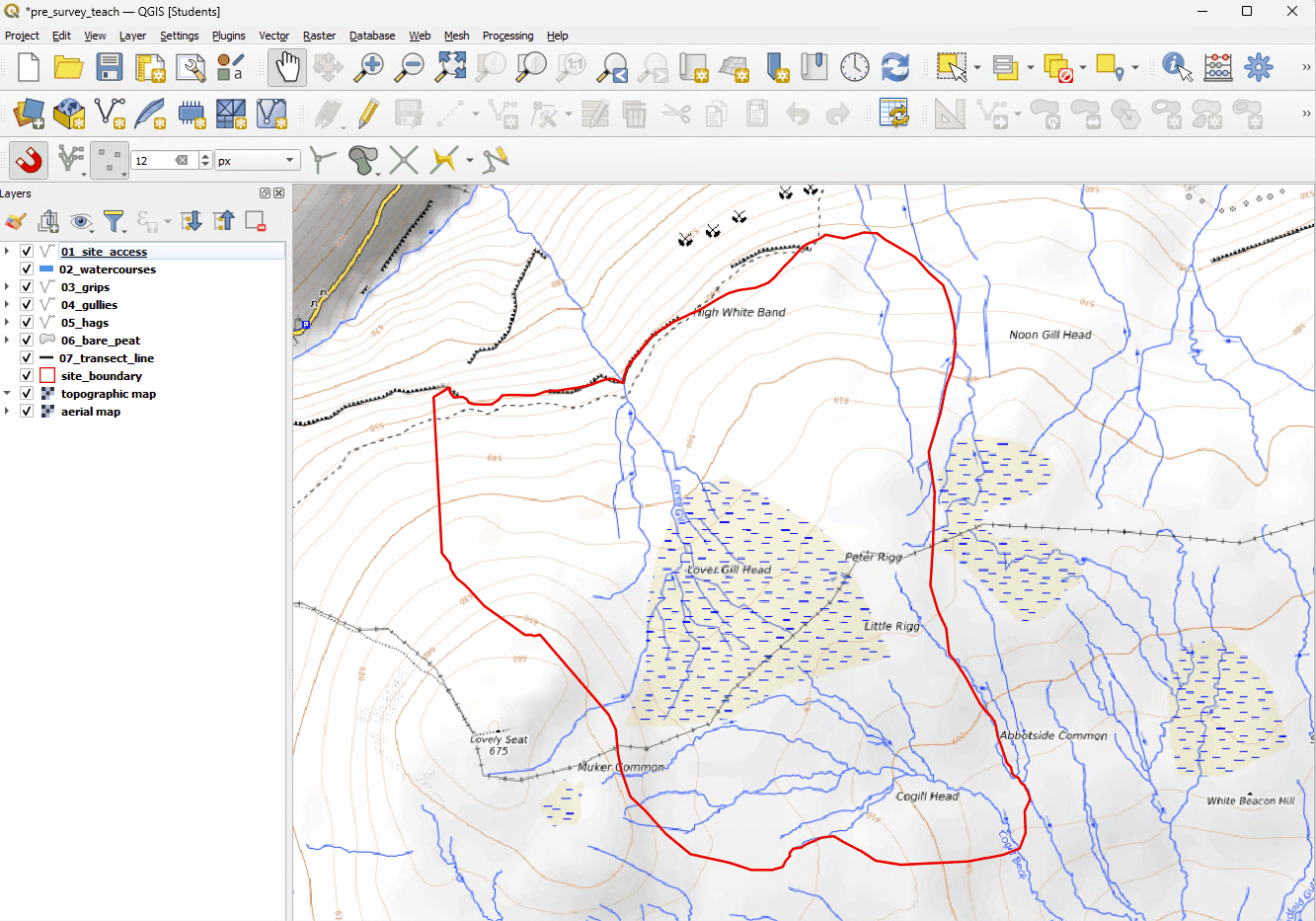

Adding survey points

  • Open the Processing Toolbox by clicking Processing>Toolbox and search for ‘Create grid’.

  • Set Grid Extent to the site_boundary layer and the horizontal and vertical spacing to 100m, then click Run.

  • You will now have a grid of points that runs to the extent of the site boundary.

  • Go back to the Processing Toolbox and search for ‘Clip’. Open this tool and select ‘Grid’ as the input layer and ‘site_boundary’ as the output, this will cut out a layer of points that fall only inside the site_boundary.

  • You can now remove the original Grid layer by right-clicking its entry in the layers panel and selecting Remove Layer.

    Tip


    The tools used in this process can also be found under Vector>Geoprocessing Tools/Research Tools.

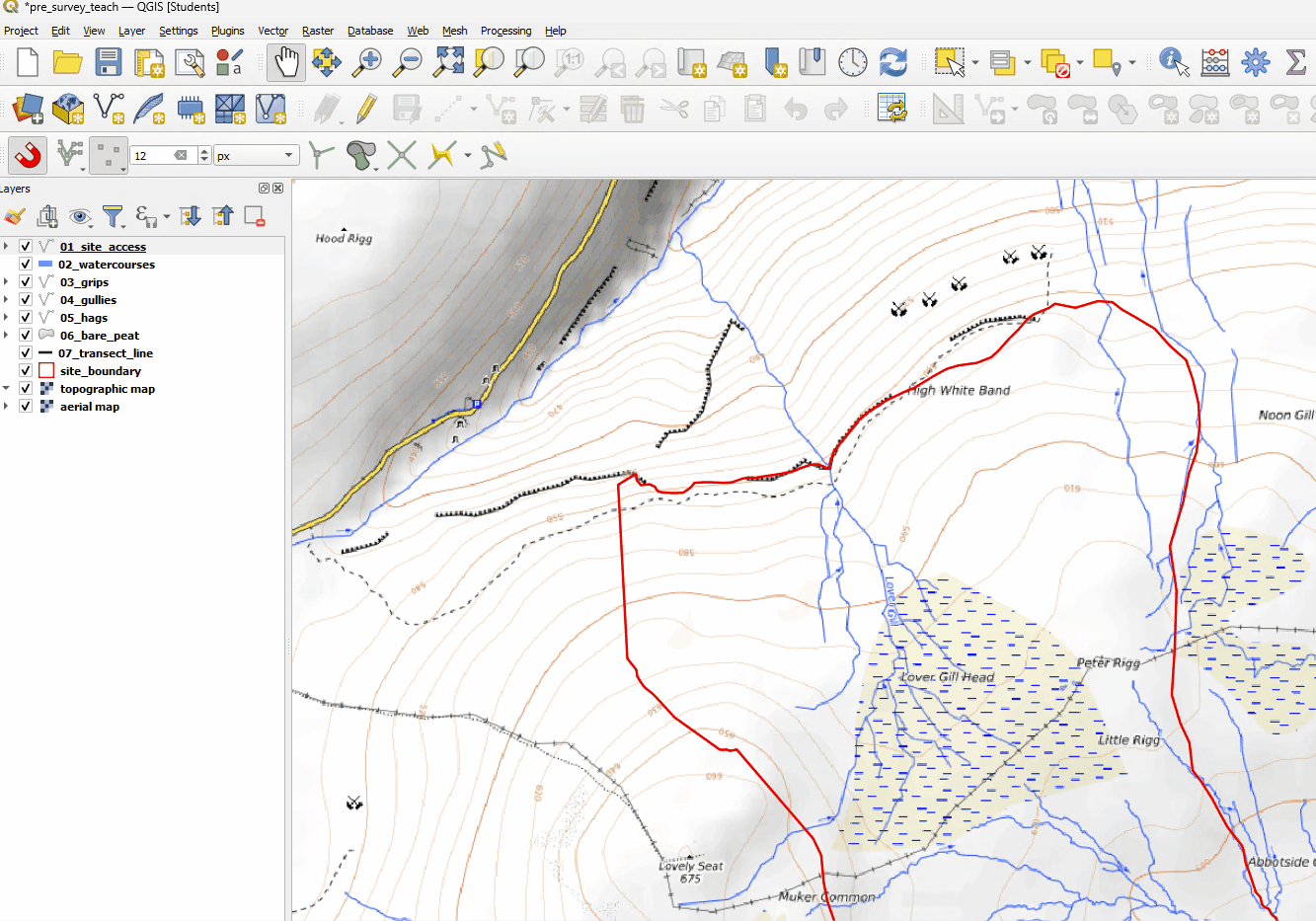

Creating a print preview

  • Click the Show Layout Manager button and then Create.

  • A name can then be added for your map, click Ok.

  • This will give you a blank layout view. To copy in your map click the Add Map button and drag it out over the layout view.
